Description
Item details
- Item: Brake Piston Plate PN: 24438
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Brake Piston Plate
- Manufacturer part no.: 24438
- Quantity on record: 2 EA
- Handal stock code: BR-00310
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Crane brake component supplied as Brake Piston Plate PN: 24438 (Handal stock code BR-00310). Brake components hold and release the load in crane hoist, slew, and boom-hoist drives. Disc and friction-pad assemblies use a stack of plates and friction material clamped under spring force, with hydraulic release for normal operation, so the brake fails safe in the absence of hydraulic pressure. Confirm dimensions, friction material grade, and assembly drawing reference. Bed in new friction surfaces per the OEM procedure before placing in full service. Handal stock code BR-00310. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

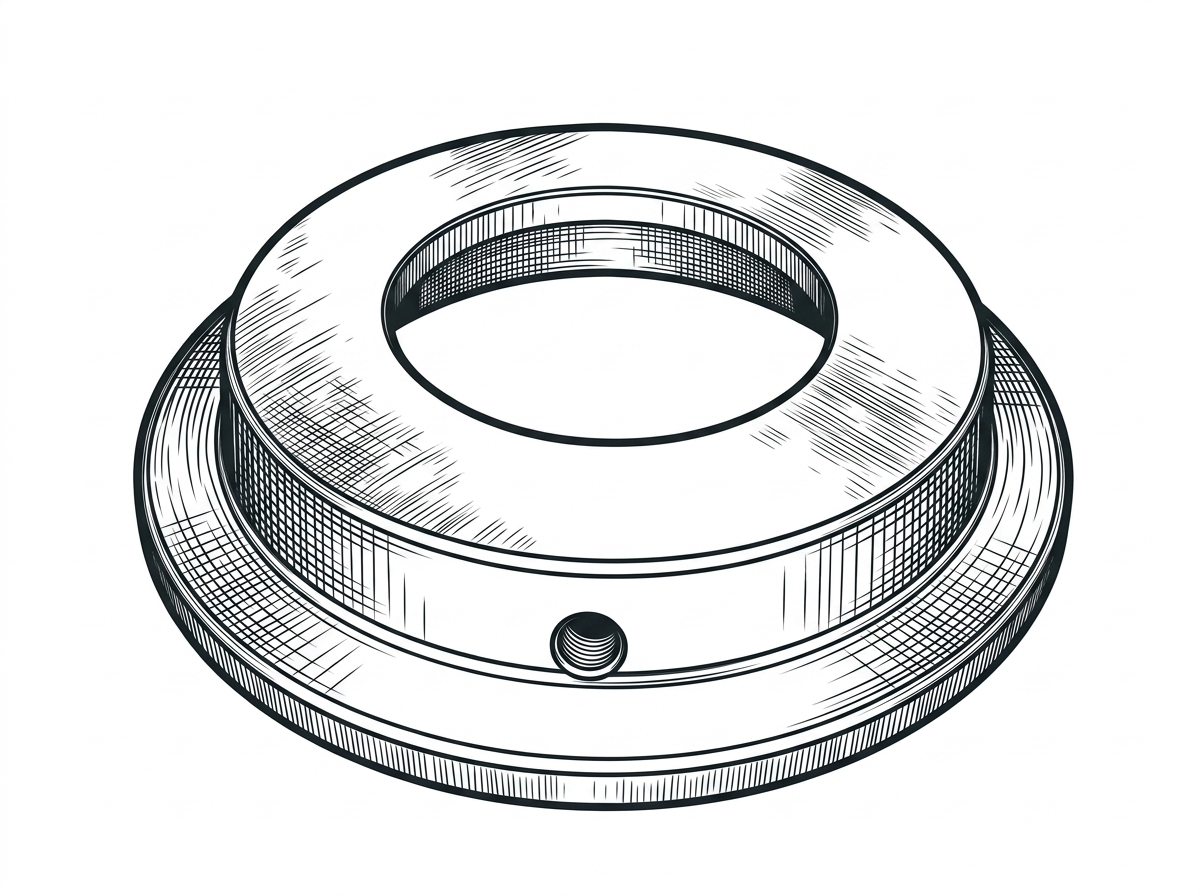

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Brake Piston Plate
- Series: CH Series
- Manufacturer part no.: 24438
Manufacturer information / datasheet:
- shop.aberdeendynamics.com/products/BRADEN-24438
- dozerwinchparts.com/24438/
- www.psifluidpower.ca/itemdetail/24438
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
