Description
Item details
- Item: BRAKE PLATE SPACER PN: 24489
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Brake Plate Spacer
- Manufacturer part no.: 24489
- Quantity on record: 7 EA
- Handal stock code: BR-00166
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Brake-disc or pressure-plate spare supplied as BRAKE PLATE SPACER PN: 24489 (Handal stock code BR-00166). Used in offshore crane brake systems, this part is part of the friction stack, pressure plate, or actuating assembly that holds the load when hydraulic pressure is removed. Replacement at the OEM service interval prevents loss of holding capacity. Confirm dimensions, friction material grade, and assembly drawing reference. Bed in new friction surfaces per the OEM procedure before placing in full service. Handal stock code BR-00166. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

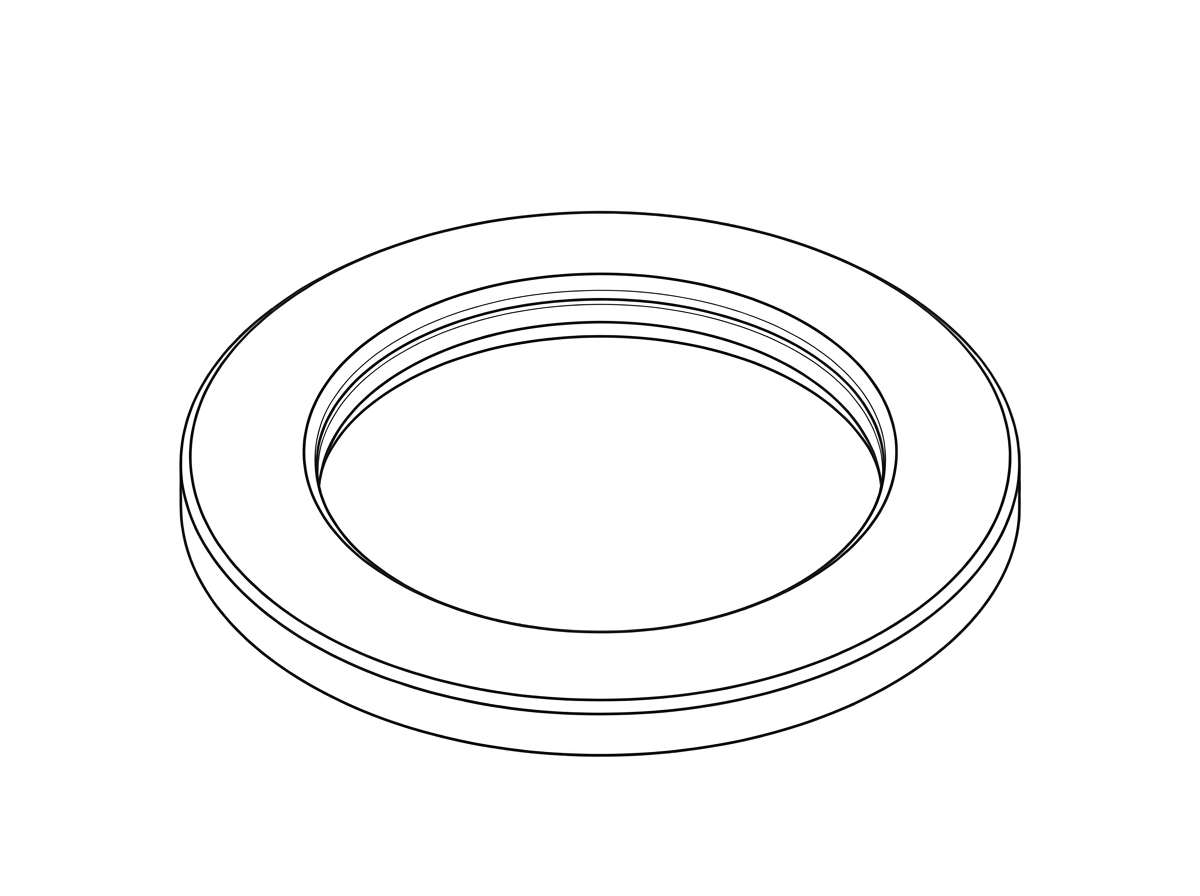

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
ⓘ This illustration is shared across all sizes of this item.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Brake Plate Spacer
- Series: CH Series
- Manufacturer part no.: 24489
Manufacturer information / datasheet:
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
