Description
Item details
- Item: Capscrew – PN: 104322
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Capscrew
- Manufacturer part no.: 104322
- Quantity on record: 10 EA
- Handal stock code: BR-00364
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Threaded fastener supplied as Capscrew – PN: 104322 (Handal stock code BR-00364). Fasteners of this class are used to clamp structural and mechanical joints in crane bases, pedestal flanges, gearbox covers, sheave guards, and rigging hardware. Material grade — typically galvanised carbon steel or stainless (304/316) — is chosen to suit the corrosive environment of offshore platforms, supply vessel decks, and coastal yards. Confirm thread size, length, grade, finish, and washer/nut requirement against your assembly drawing before installation. For lifting-point eye bolts, verify load rating and certification before placing in service. Handal stock code BR-00364. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

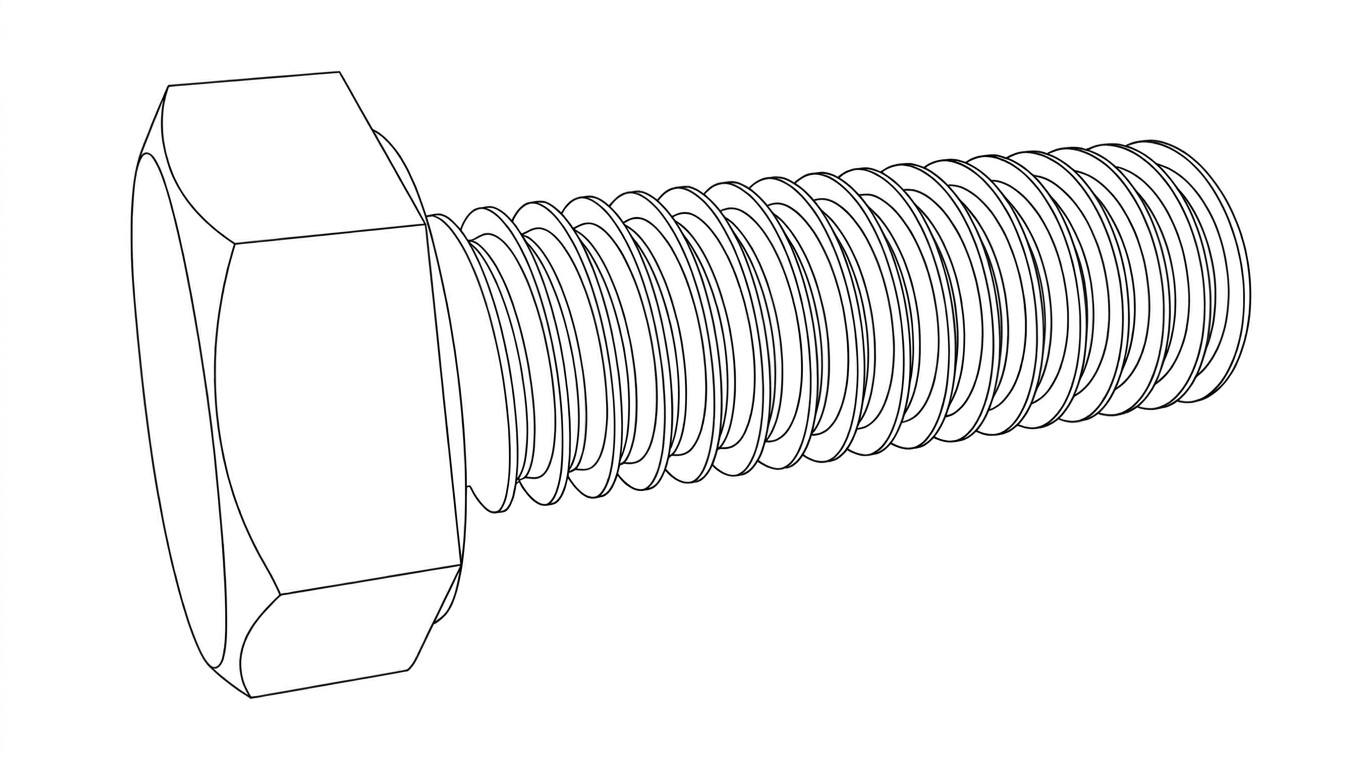

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
ⓘ This illustration is shared across all sizes of this item.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Capscrew
- Series: 30B, 50B, 70A, H90
- Manufacturer part no.: 104322
Manufacturer information / datasheet:
- bigrigworld.com/capscrew-104322bwn.html
- dozerwinchparts.com/104322/
- shop.aberdeendynamics.com/products/BRADEN-104322
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden PD15B Parts List (Braden)
- Braden CH400B Construction Hoist – Parts List (Braden)
- Braden CH330 / CH400 Hydraulic Motors Material List (single-speed and two-speed motor) (Braden)
- Braden CH280 Material List (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
