Description
Item details
- Item: CAPSCREW – PN: 23690
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: CAPSCREW
- Manufacturer part no.: 23690
- Quantity on record: 6 EA
- Handal stock code: BR-00114
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Structural fastener supplied as CAPSCREW – PN: 23690 (Handal stock code BR-00114). Used for clamping structural and mechanical joints, this fastener is sized for service in crane base bolting, rigging hardware, machinery mountings, and platform deck attachments. Galvanised and stainless grades are commonly supplied to suit splash-zone and offshore weather exposure. Confirm thread size, length, grade, finish, and washer/nut requirement against your assembly drawing before installation. For lifting-point eye bolts, verify load rating and certification before placing in service. Handal stock code BR-00114. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

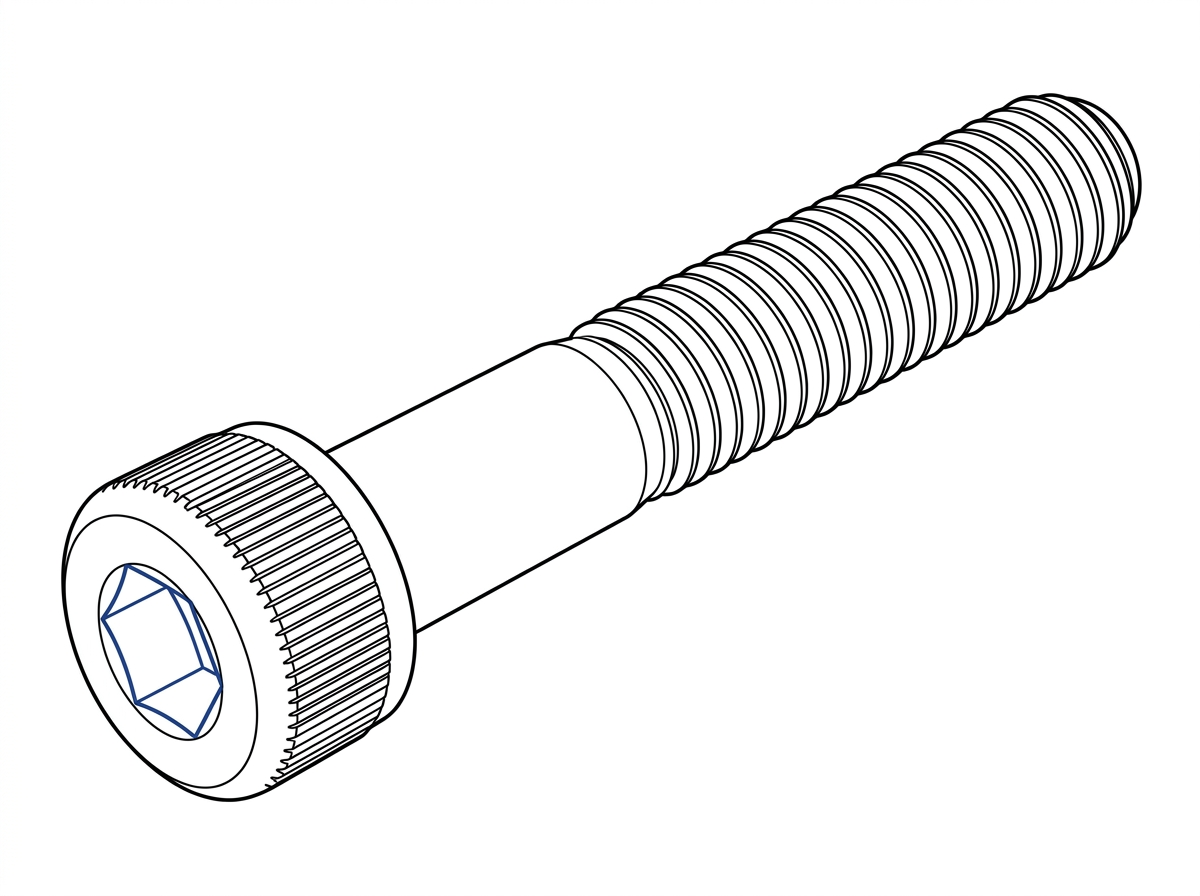

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
ⓘ This illustration is shared across all sizes of this item.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: CAPSCREW
- Manufacturer part no.: 23690
Manufacturer information / datasheet:
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden CH400B Construction Hoist – Parts List (Braden)
- Braden CH330 / CH400 Hydraulic Motors Material List (single-speed and two-speed motor) (Braden)
- Braden CH280 Material List (Braden)
- Braden CH150, CH175, CH185 & CH230 (and C2H150/C2H175/C2H185/C2H230) Material List – Standard Motor Installation (Braden)
- Braden CH150A, CH175A, CH185A & CH230A Planetary Hoists – Parts Catalog (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
