Description
Item details

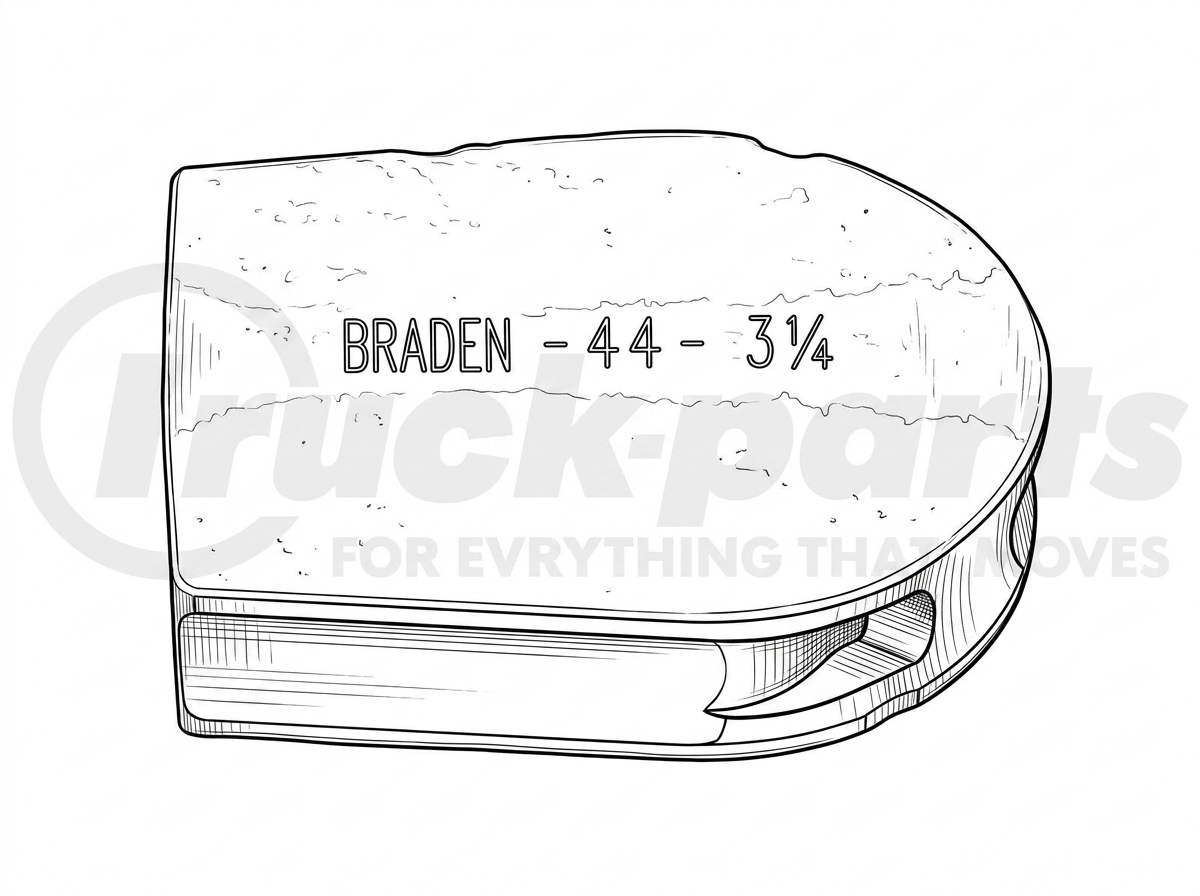

- Item: CH230 & C2H 230 Cable Wedge PN: 24494
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Cable Wedge (3/4-1 CH230)
- Manufacturer part no.: 24494
- Quantity on record: 5 EA
- Handal stock code: BR-00170
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Crane electrical part supplied as CH230 & C2H 230 Cable Wedge PN: 24494 (Handal stock code BR-00170). Electrical parts on offshore lifting equipment must withstand vibration, salt-laden atmosphere, and a wide temperature band while remaining within the host facility’s electrical area classification. This component is supplied for use in crane control, monitoring, lighting, or motor-feed circuits per the relevant assembly drawing. Confirm voltage, current rating, IP/Ex classification, and circuit reference against the crane electrical schematic before installation. Always isolate and lock out the supply before removal or fitting. Handal stock code BR-00170. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].
⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Cable Wedge (3/4-1 CH230)
- Series: CH Series (CH230 & C2H230)
- Manufacturer part no.: 24494
- Cable size: 3/4-1
- Model compatibility: CH230 & C2H230
Manufacturer information / datasheet:
- drillingparts.com/paccar-24494.html
- dozerwinchparts.com/24494/
- partsraptor.com/braden-paccar-24494-cable-wedge-3-4-1-ch230-285278
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden Winch Catalog – Proven, Reliable and Always Innovative (full product line catalog) (Braden)
- Braden PD15B Parts List (Braden)
- Braden CH280 Material List (Braden)
- Braden CH280A Hydraulic Winch Material List (covers units 06089, 06090, 06091, 06109) (Braden)
- Braden CH150, CH175, CH185 & CH230 (and C2H150/C2H175/C2H185/C2H230) Material List – Standard Motor Installation (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
