Description
Flow-control valve supplied as Directional Spool Valve PN: 4WE-6-E62/EG24N9K4 (PN CP-03684). This valve is used to switch, throttle, or protect a defined hydraulic or pneumatic circuit on the crane. Spool type, port size, pressure rating, and pilot/solenoid actuation must match the OEM hydraulic schematic so the circuit behaves as designed and the safety functions remain effective. Confirm port size, pressure rating, flow capacity, and any solenoid/pilot supply against the hydraulic schematic. Bleed and pressure-test the circuit before returning the crane to service. Part No. CP-03684. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

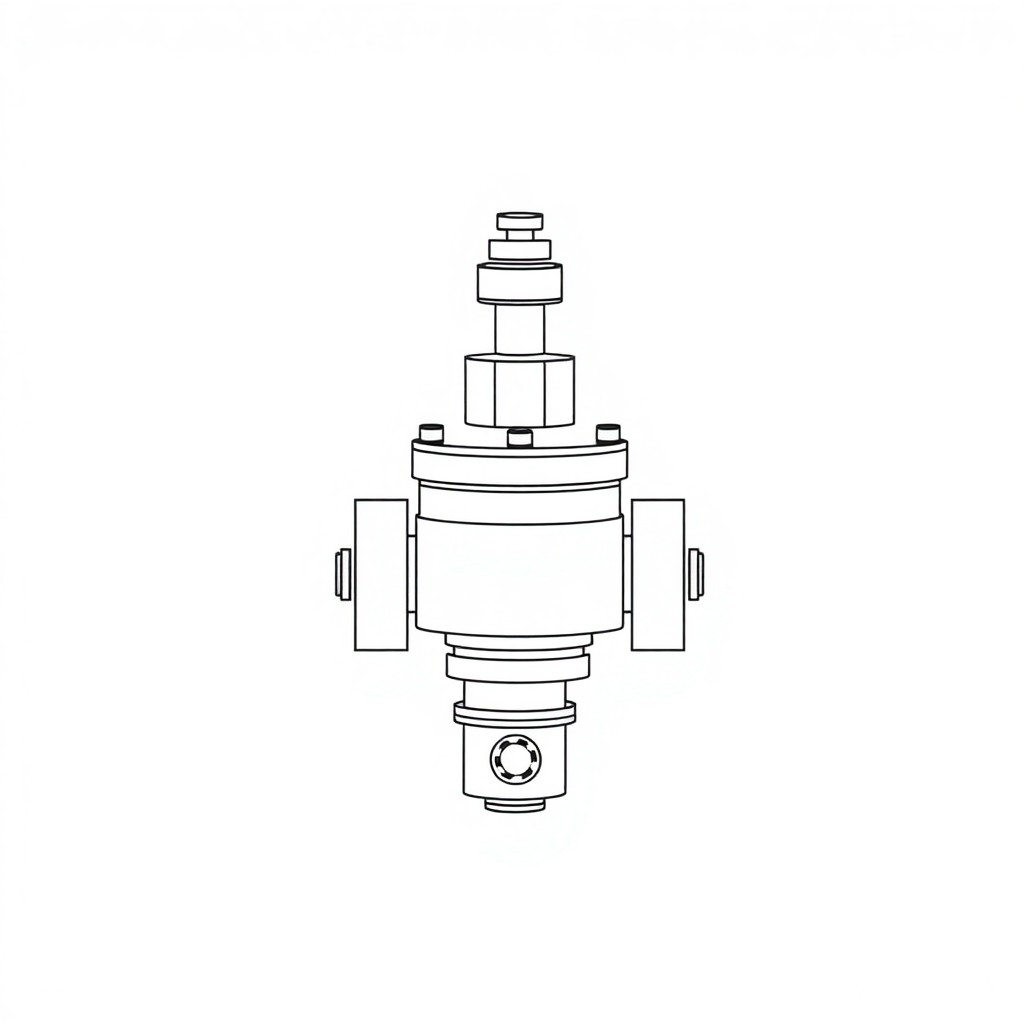

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Bosch Rexroth
- Product: Directional Spool Valve
- Series: 4WE 6 E62/EG24N9K4
- Manufacturer part no.: 4WE-6-E62/EG24N9K4
- Size: NG6 (D03)
- Actuation: solenoid operated, direct operated
- Positions ways: 3 position & 4 way (also described as 4/2)
- Solenoid: double solenoid, 24 VDC coils (DIN style)
- Seals: Buna
- Max pressure: 350 bar
- Flow: 76 L/min
- Spool: E, Series 62
- Return: spring return
- Override: protected hand override (standard)
- Porting pattern: ISO 4401-03-02-0-05 / NFPA T3.5.1 R2-2002 D03
Manufacturer information / datasheet:
- www.boschrexroth.com/media/2ef9f5e4-8434-4aac-9ffc-ca7c8617844a?c=us&l
- www.echuan-hydraulic.com/product/rexroth-r900561278-4we-6-e62-eg24n9k4
- www.radwell.com/Buy/BOSCH/REXROTH/R900561278
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
