Description
Flow-control valve supplied as DRAIN-CHECK VALVE SPRING PN: 24198 (PN BR-00136). This valve is used to switch, throttle, or protect a defined hydraulic or pneumatic circuit on the crane. Spool type, port size, pressure rating, and pilot/solenoid actuation must match the OEM hydraulic schematic so the circuit behaves as designed and the safety functions remain effective. Confirm port size, pressure rating, flow capacity, and any solenoid/pilot supply against the hydraulic schematic. Bleed and pressure-test the circuit before returning the crane to service. Part No. BR-00136. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

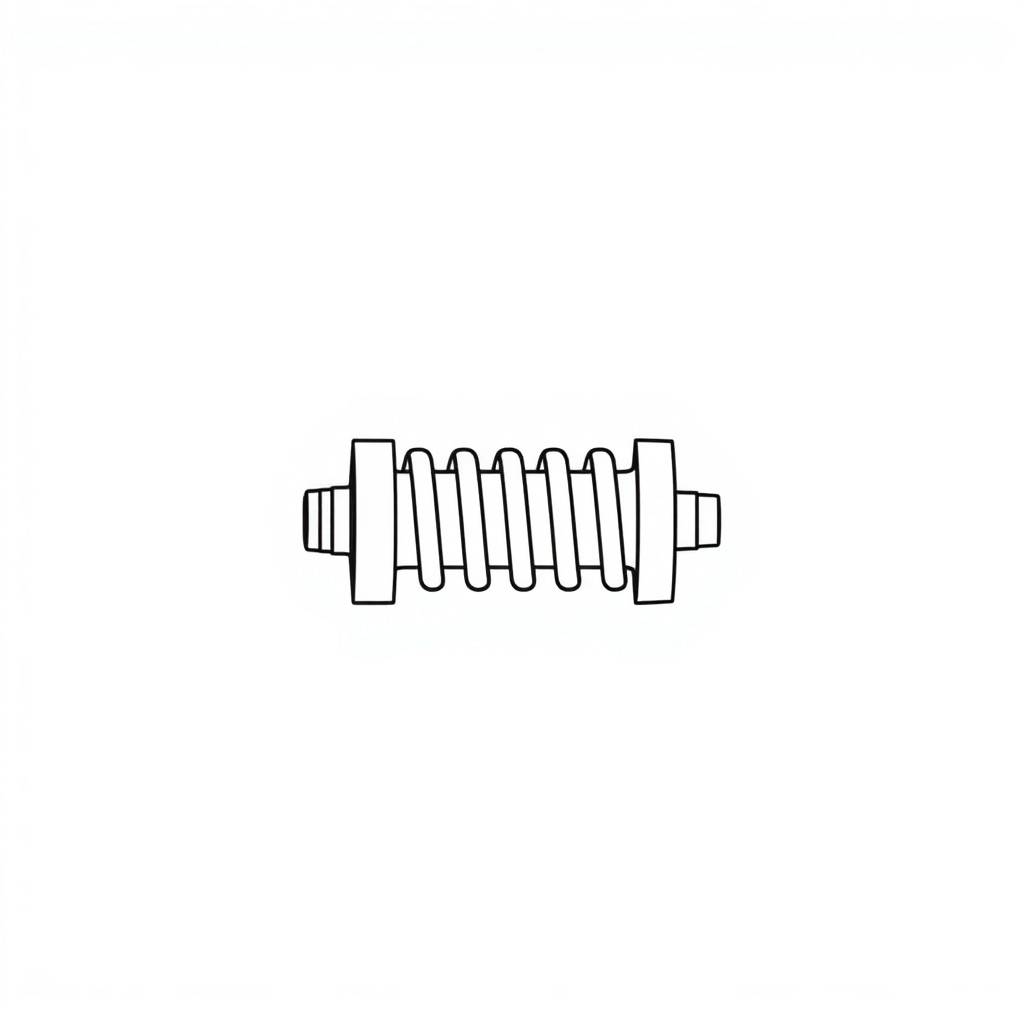

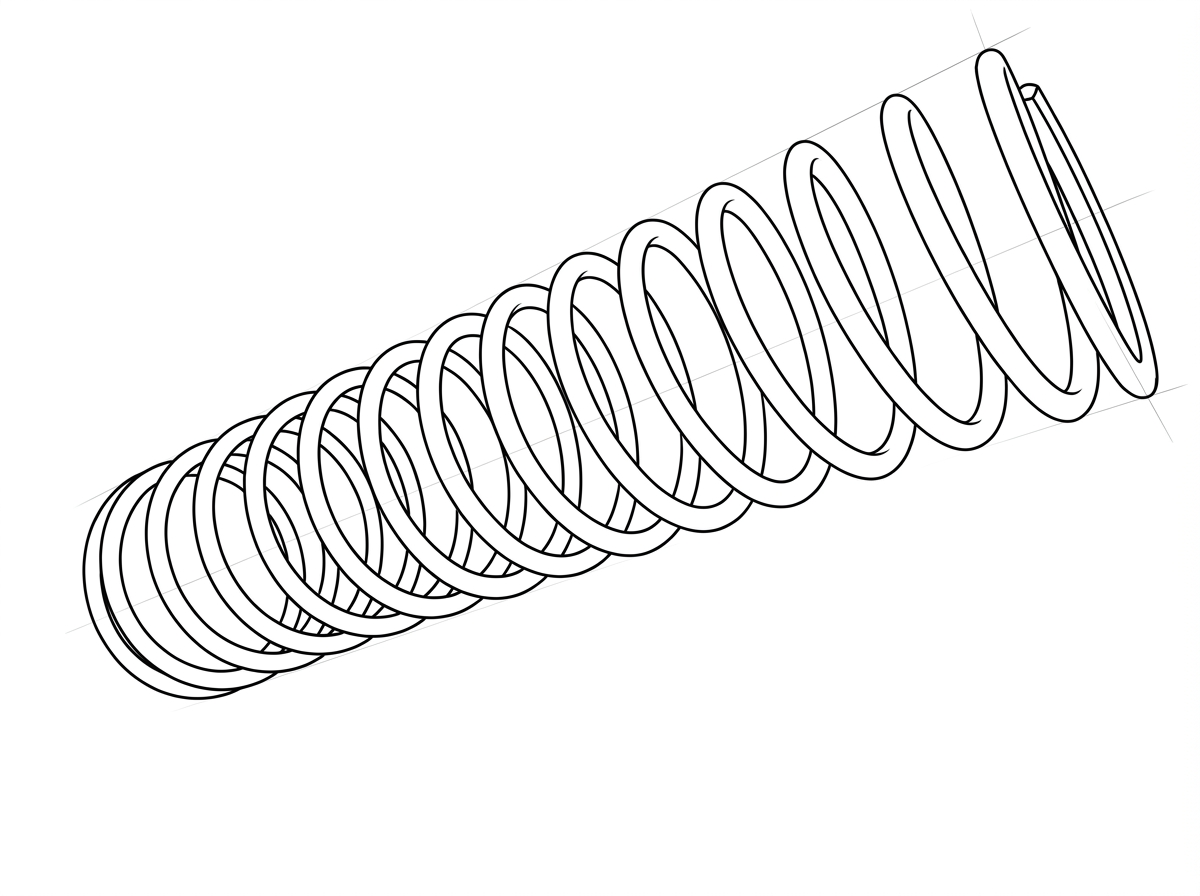

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: DRAIN-CHECK VALVE SPRING
- Manufacturer part no.: 24198
Manufacturer information / datasheet:
- dozerwinchparts.com/24198/
- shop.aberdeendynamics.com/products/BRADEN-24198
- www.armyproperty.com/product/08302/24198/
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
