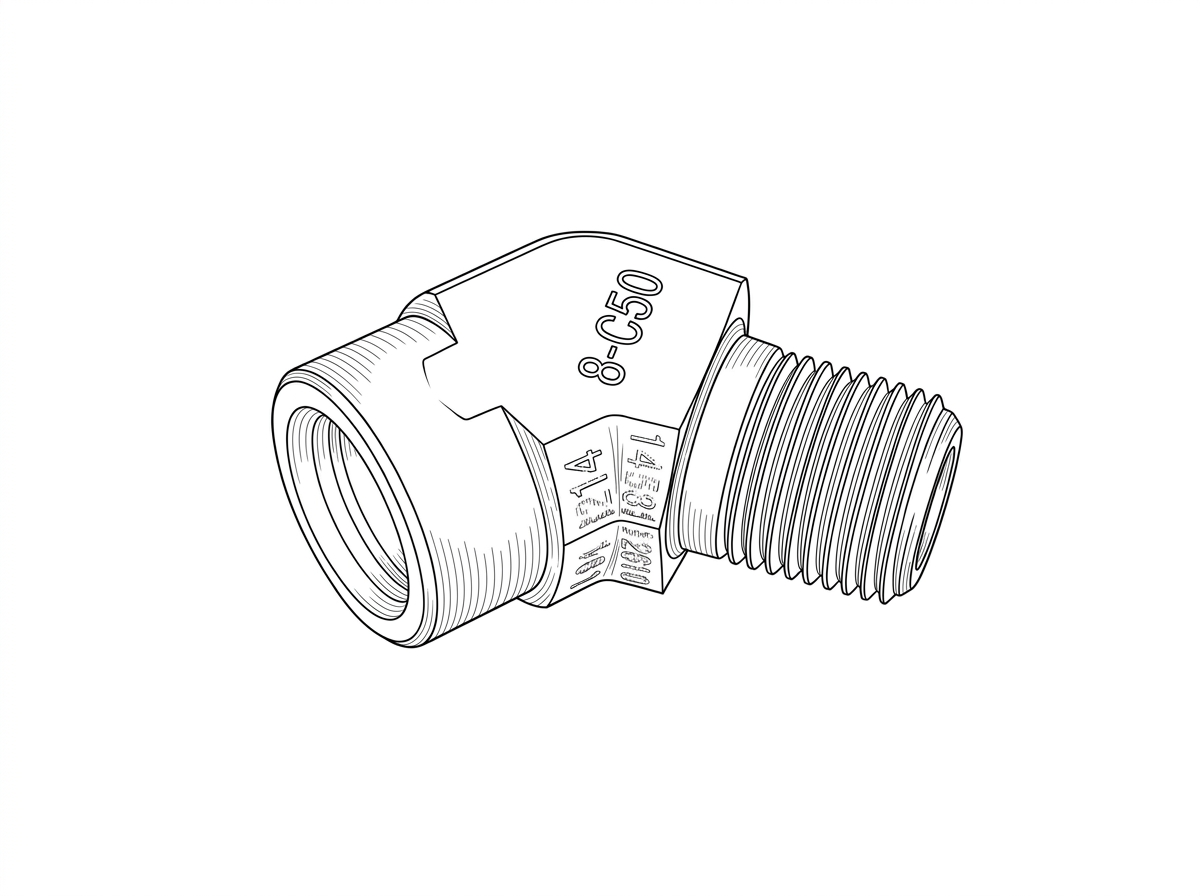

- Item: ELBOW STREET – PN: 13709
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Elbow-Street 45DEG
- Manufacturer part no.: 13709
- Quantity on record: 4 EA
- Handal stock code: BR-00028
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Fluid-power connection part supplied as ELBOW STREET – PN: 13709 (Handal stock code BR-00028). Hydraulic hoses and fittings transfer fluid power across the crane between the pump, valve bank, motors, and cylinders. Pressure rating, hose construction, end-fitting type, and overall length must match the installation drawing so the assembly seals and routes without abrasion or kinking. Confirm pressure rating, hose ID, OAL, end-fitting type, and orientation against the hydraulic schematic before installation. Bleed and pressure-test the line before returning the crane to service. Handal stock code BR-00028. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].
⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Elbow-Street 45DEG
- Manufacturer part no.: 13709
- Angle: 45 degrees
- Type: elbow street
Manufacturer information / datasheet:
- dozerwinchparts.com/13709/
- shop.aberdeendynamics.com/products/BRADEN-13709
- www.nsn-supplies.com/nato/rfq/braden-carco-gearmatic-div-of-paccar/473
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
