Description
Item details
- Item: Elbow TBG FTG – PN: 21163
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Elbow TBG FTG / Elbow Male
- Manufacturer part no.: 21163
- Quantity on record: 3 EA
- Handal stock code: BR-00066
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Hydraulic hose or fitting supplied as Elbow TBG FTG – PN: 21163 (Handal stock code BR-00066). Hoses and fittings carry hydraulic oil between the crane power pack, control valves, hoist and slew motors, brake circuits, and luffing cylinders. Each line is rated for working pressure, burst pressure, temperature range, and the specific fluid in service. Fitting type — JIC, ORFS, BSPP, NPT, or SAE flange — must match the mating port to seal correctly. Confirm pressure rating, hose ID, OAL, end-fitting type, and orientation against the hydraulic schematic before installation. Bleed and pressure-test the line before returning the crane to service. Handal stock code BR-00066. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

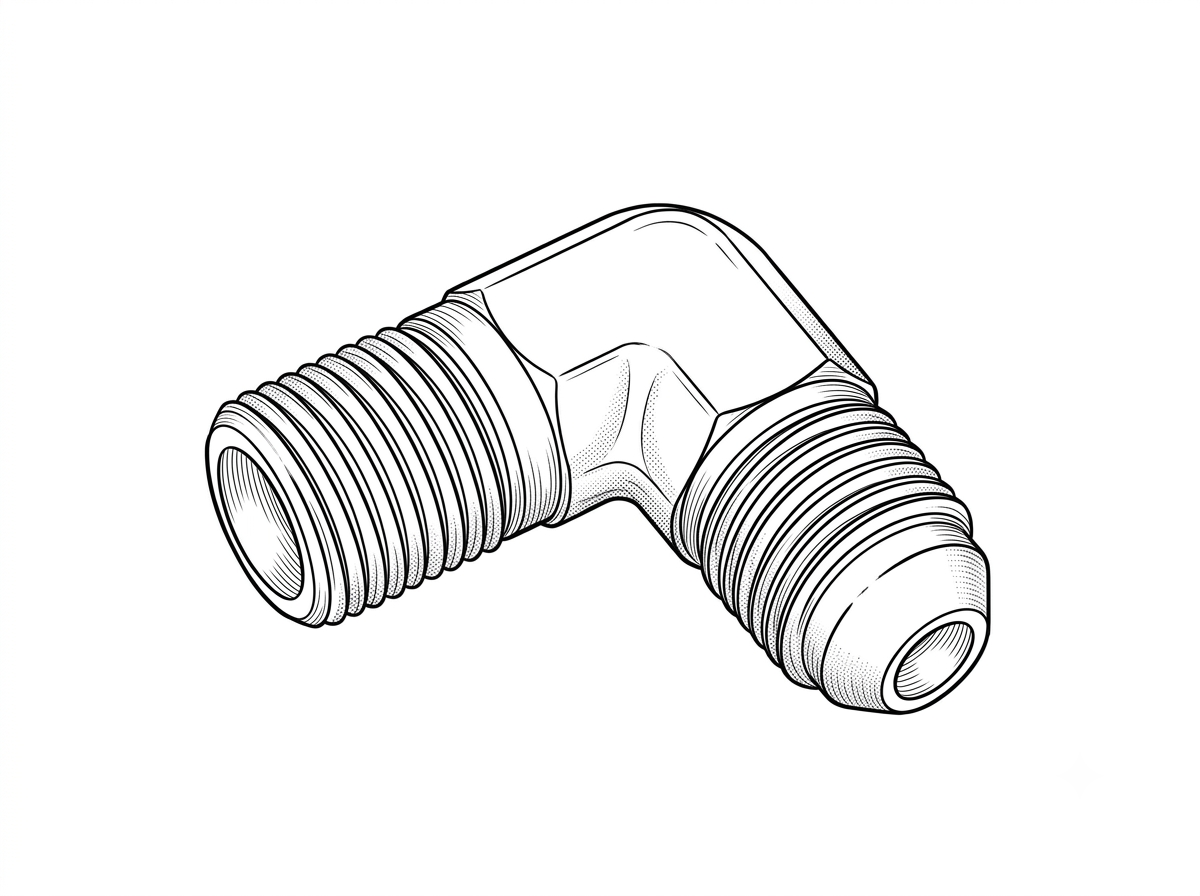

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Elbow TBG FTG / Elbow Male
- Manufacturer part no.: 21163
Manufacturer information / datasheet:
- shop.aberdeendynamics.com/products/BRADEN-21163
- dozerwinchparts.com/21163/
- www.ebay.com/itm/116331650843
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden PD15B Parts List (Braden)
- Braden PD12C, PD15B, PD17A Hydraulic Hoist Series – Installation, Maintenance and Service Manual (alternate scan/mirror) (Braden)
- Braden CH400B Construction Hoist – Parts List (Braden)
- Braden CH280 Material List (Braden)
- Braden CH280A Hydraulic Winch Material List (covers units 06089, 06090, 06091, 06109) (Braden)
- Braden CH150, CH175, CH185 & CH230 (and C2H150/C2H175/C2H185/C2H230) Material List – Standard Motor Installation (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
