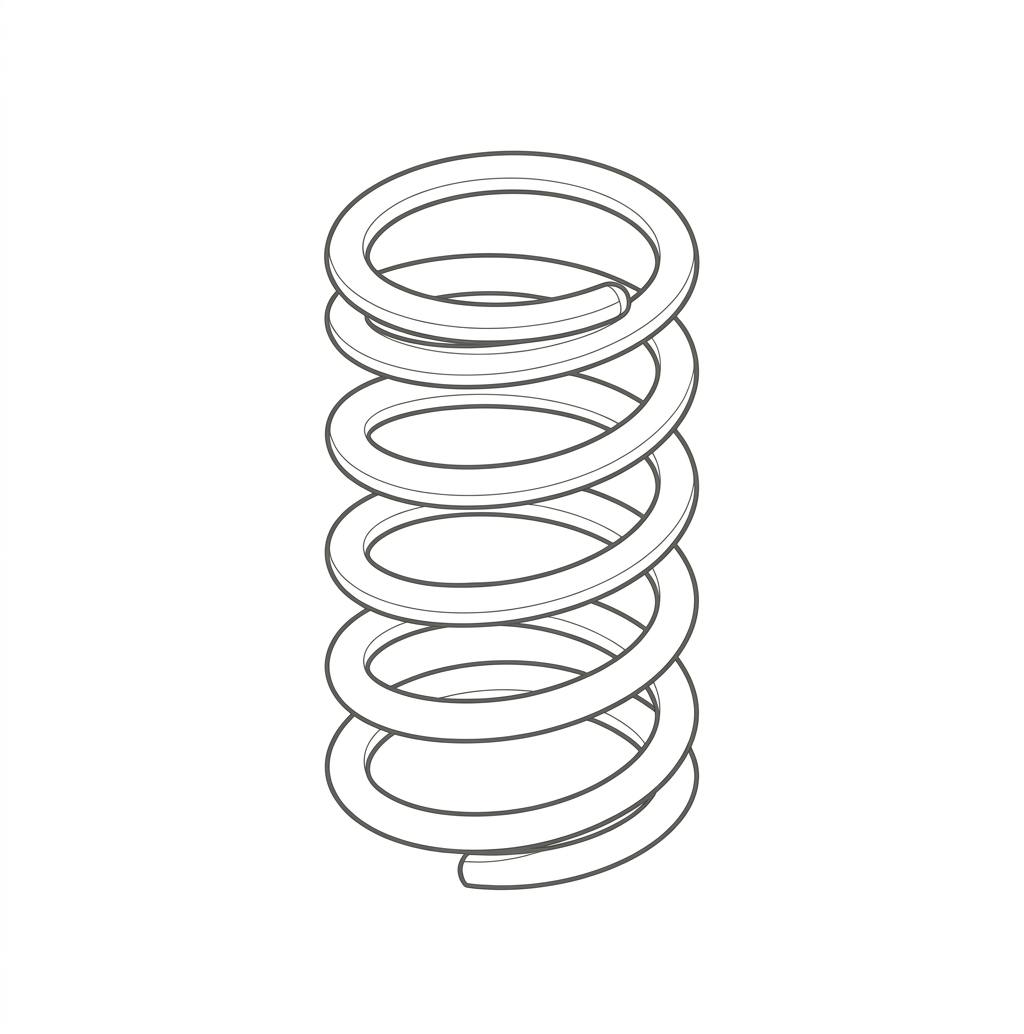

Energy-storage component supplied as End Spring (PN CH-00011). This spring or diaphragm is sized for service in a crane brake, clutch, valve, accumulator, or pump assembly. Rate, free length, wire diameter, end configuration, and material grade must match the OEM specification so the load–deflection curve is preserved. Confirm free length, rate, wire/disc dimensions, and material grade against the OEM service drawing. Replace springs in matched sets where the OEM specifies. Part No. CH-00011. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

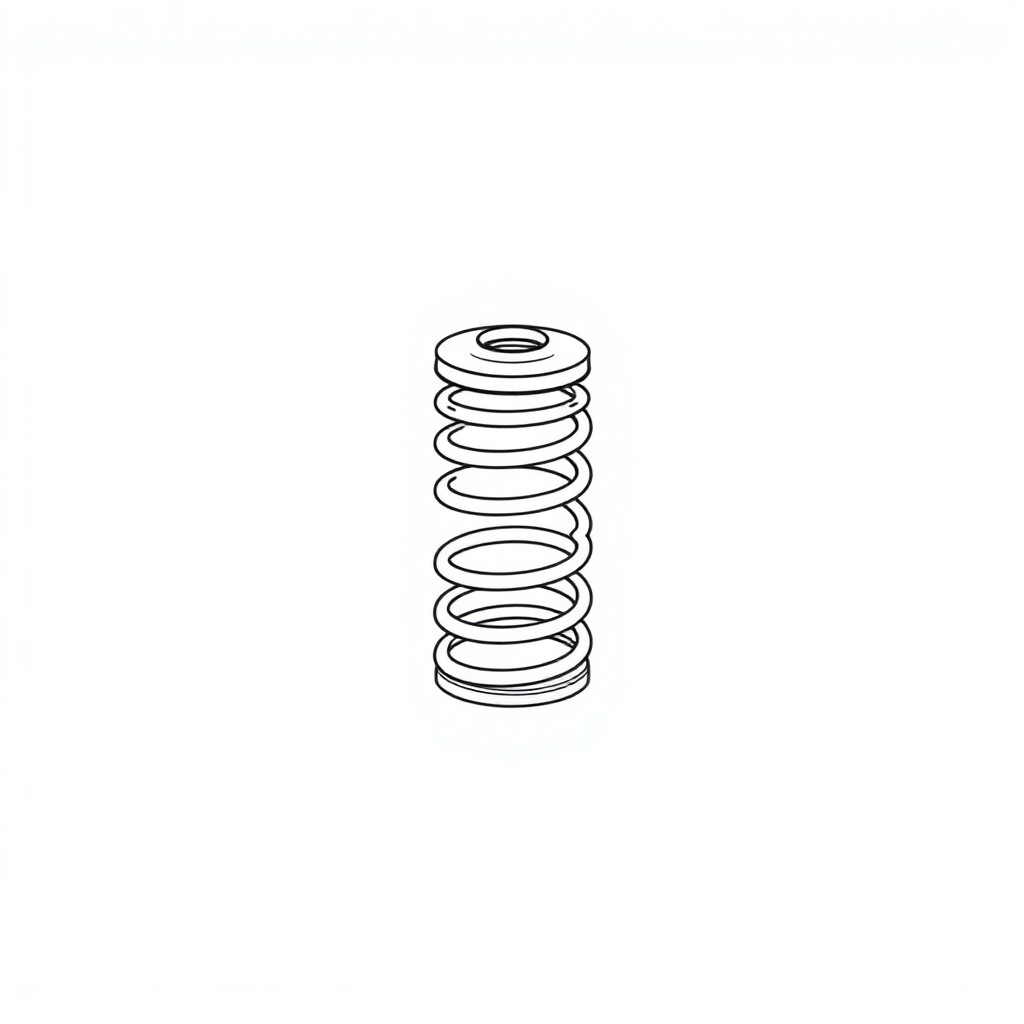

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
