Hydraulic manifold or orifice supplied as MANIFOLD – PN: 22565 (PN BR-00090). Manifolds gather multiple hydraulic functions into a single block — control valves, pressure protection, pilot logic, and check valves — so the crane hydraulic system has a clean, leak-free assembly with consistent port spacing. Orifices meter flow to set actuation speed and shock-absorption behaviour. Confirm port pattern, orifice size, and pressure rating against the hydraulic schematic. Pressure-test the assembly before returning to service. Part No. BR-00090. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

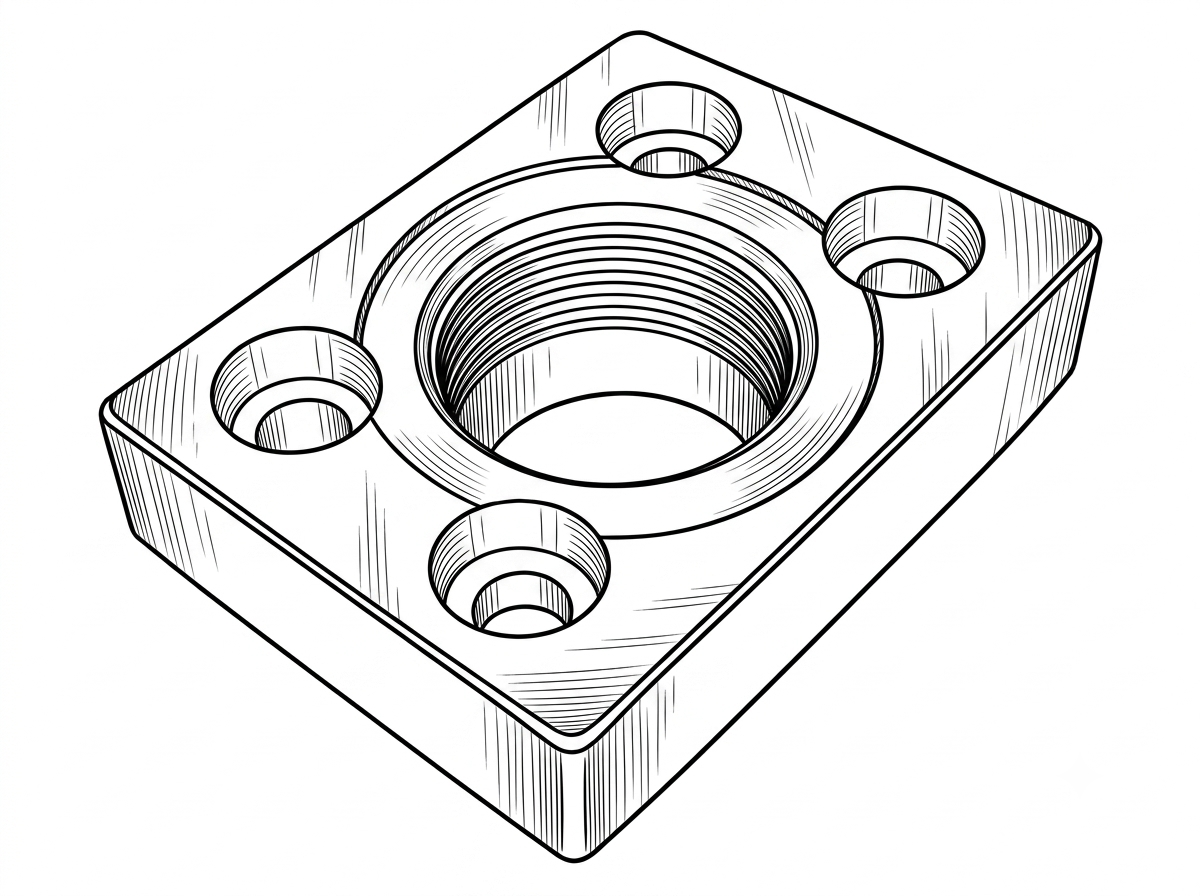

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
ⓘ This illustration is shared across all sizes of this item.
