Description
Item details
- Item: Nipple PN: 25038
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Nipple
- Manufacturer part no.: 25038
- Quantity on record: 11 EA
- Handal stock code: BR-00187
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Fluid-power connection part supplied as Nipple PN: 25038 (Handal stock code BR-00187). Hydraulic hoses and fittings transfer fluid power across the crane between the pump, valve bank, motors, and cylinders. Pressure rating, hose construction, end-fitting type, and overall length must match the installation drawing so the assembly seals and routes without abrasion or kinking. Confirm pressure rating, hose ID, OAL, end-fitting type, and orientation against the hydraulic schematic before installation. Bleed and pressure-test the line before returning the crane to service. Handal stock code BR-00187. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

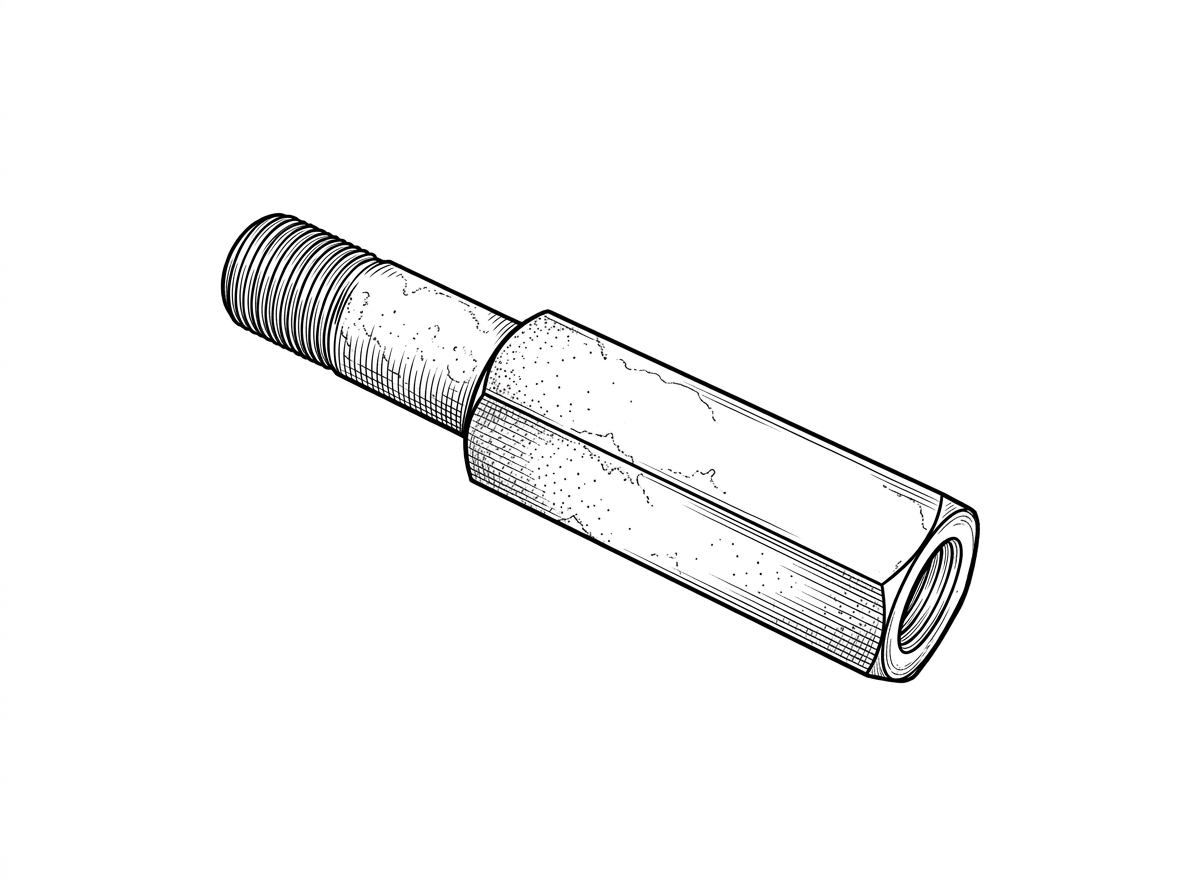

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
ⓘ This illustration is shared across all sizes of this item.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Nipple
- Series: CH Series
- Manufacturer part no.: 25038
Manufacturer information / datasheet:
- dozerwinchparts.com/25038/
- drillingparts.com/paccar-25038.html
- www.airlinehyd.com/product/BRADEN-25038/1653908
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden CH150, CH175, CH185 & CH230 (and C2H150/C2H175/C2H185/C2H230) Material List – Standard Motor Installation (Braden)
- Braden CH150A, CH175A, CH185A & CH230A Planetary Hoists – Parts Catalog (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
