Description
Item details
- Item: OUTPUT PLANET, Braden#24576
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Output Planet Gear
- Manufacturer part no.: 24576
- Quantity on record: 8 EA
- Handal stock code: BR-00173
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Geartrain spare supplied as OUTPUT PLANET, Braden#24576 (Handal stock code BR-00173). Used in offshore crane geartrains for hoist, slew, and boom-hoist drives, this gear is supplied against the OEM part number and confirmed to the gearbox assembly drawing. Confirm tooth count, module, profile, hardness, and mounting against the OEM drawing. Replace mating gears as a set where the OEM specifies. Handal stock code BR-00173. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

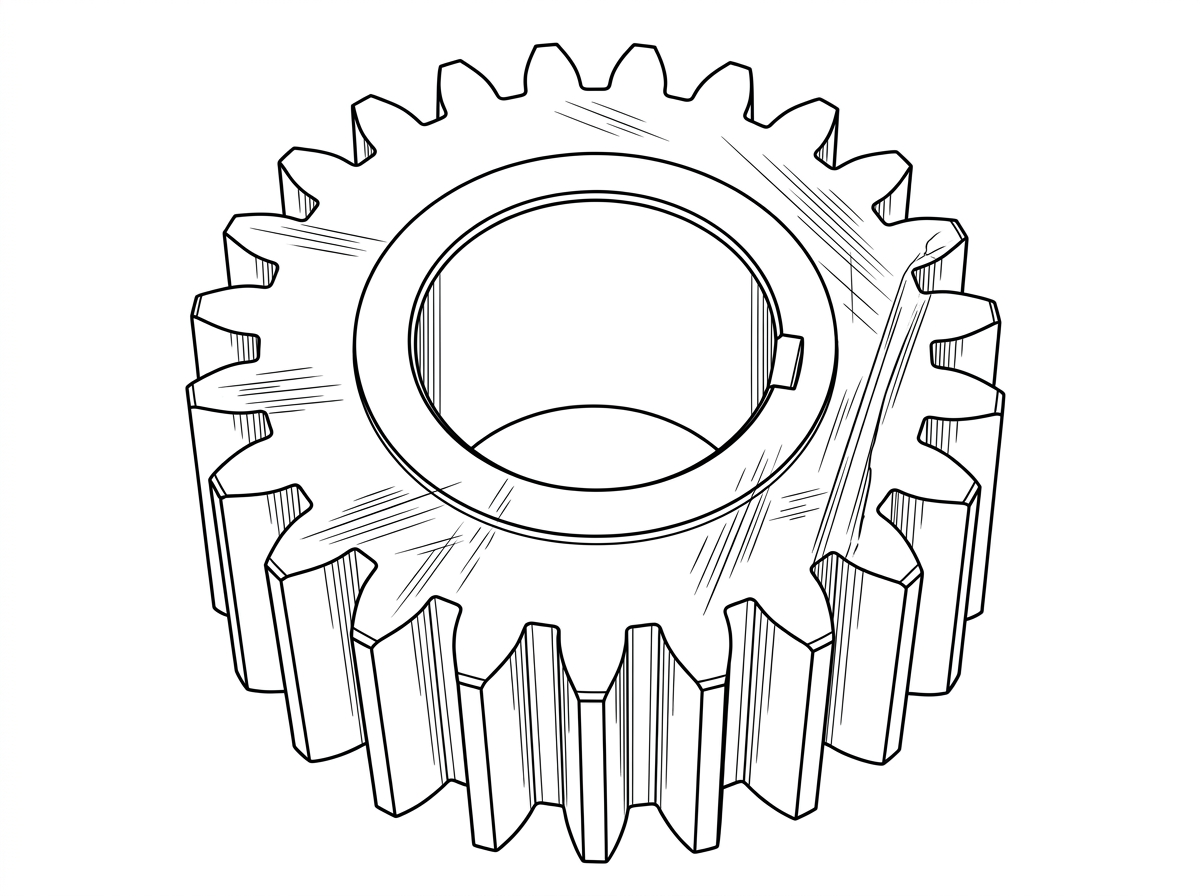

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Output Planet Gear
- Series: CH Series (CH185 & C2H185, CH230 & C2H230)
- Manufacturer part no.: 24576
Manufacturer information / datasheet:
- dozerwinchparts.com/24576/
- www.airlinehyd.com/product/BRADEN-24576/1653659
- www.asapfulfillment.com/nsn/rfq/braden-carco-gearmatic-div-of-paccar/3
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
