Description
Item details
- Item: Planet Gear Shaft PN: 25613
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Planet Gear Shaft
- Manufacturer part no.: 25613
- Quantity on record: 6 EA
- Handal stock code: BR-00333
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Planetary or sun gear supplied as Planet Gear Shaft PN: 25613 (Handal stock code BR-00333). Sun, planet, and ring gears mesh inside the planetary gearbox to provide multi-stage reduction with shared load across multiple teeth. Tooth profile, module, hardness, and case depth must match the parent geartrain so meshing and contact patterns remain within design. Confirm tooth count, module, profile, hardness, and mounting against the OEM drawing. Replace mating gears as a set where the OEM specifies. Handal stock code BR-00333. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

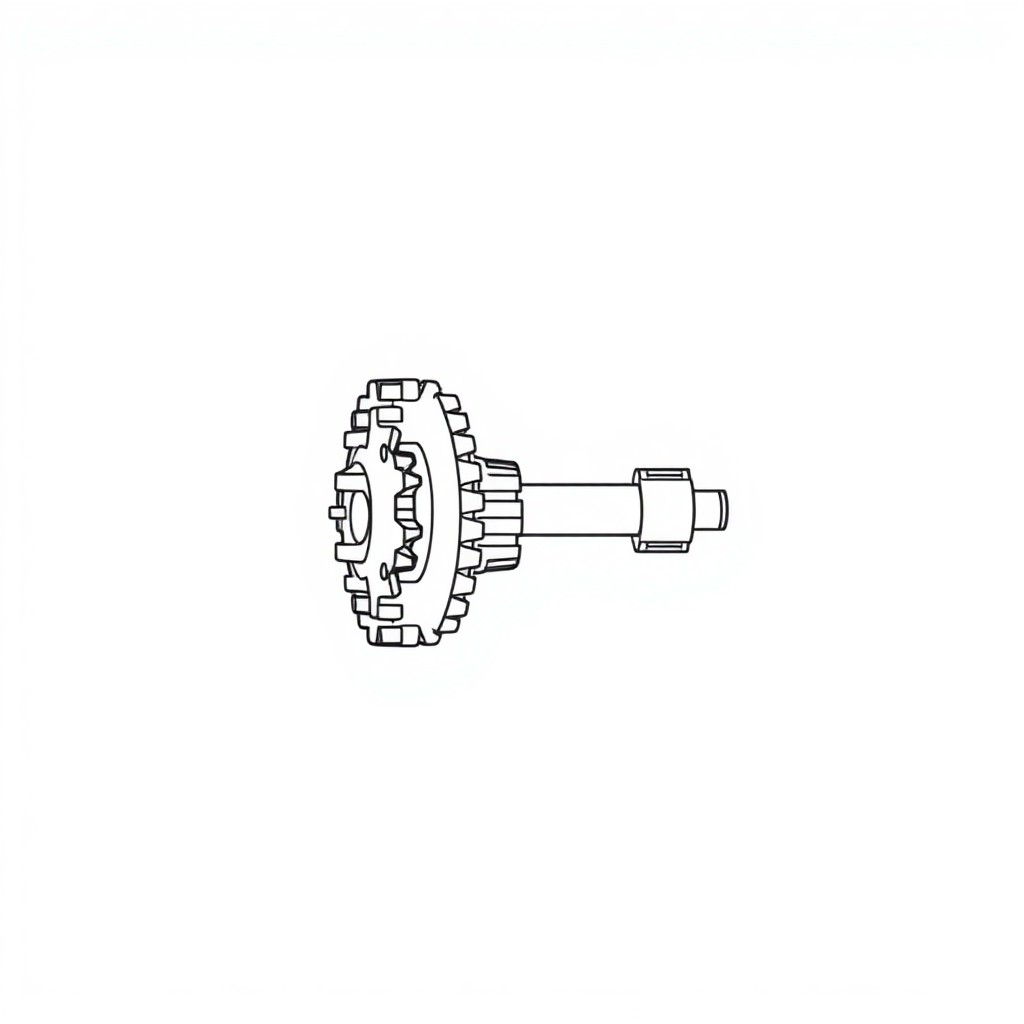

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
ⓘ This illustration is shared across all sizes of this item.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Planet Gear Shaft
- Series: HC60
- Manufacturer part no.: 25613
- Material: Hardened and Ground shaft
Manufacturer information / datasheet:
- www.winchpartsupply.com/products/braden%C2%AE-primary-gear-shaft-numbe
- www.psifp.com/itemdetail/25613
- dozerwinchparts.com/25613/
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden PD15B Parts List (Braden)
- Braden PD12C, PD15B, PD17A Hydraulic Hoist Series – Installation, Maintenance and Service Manual (alternate scan/mirror) (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
