Description
Item details
- Item: PLUG -PN: 24420
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Plug
- Manufacturer part no.: 24420
- Quantity on record: 5 EA
- Handal stock code: BR-00142
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Threaded plug or cap supplied as PLUG -PN: 24420 (Handal stock code BR-00142). Plugs and caps close unused ports on hydraulic manifolds, valve blocks, gearboxes, and process piping. Thread form, sealing method, and material grade must match the parent port so the closure seals reliably under working pressure. Confirm thread form, seal arrangement, and material against the assembly drawing. Tighten to the OEM torque specification. Handal stock code BR-00142. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

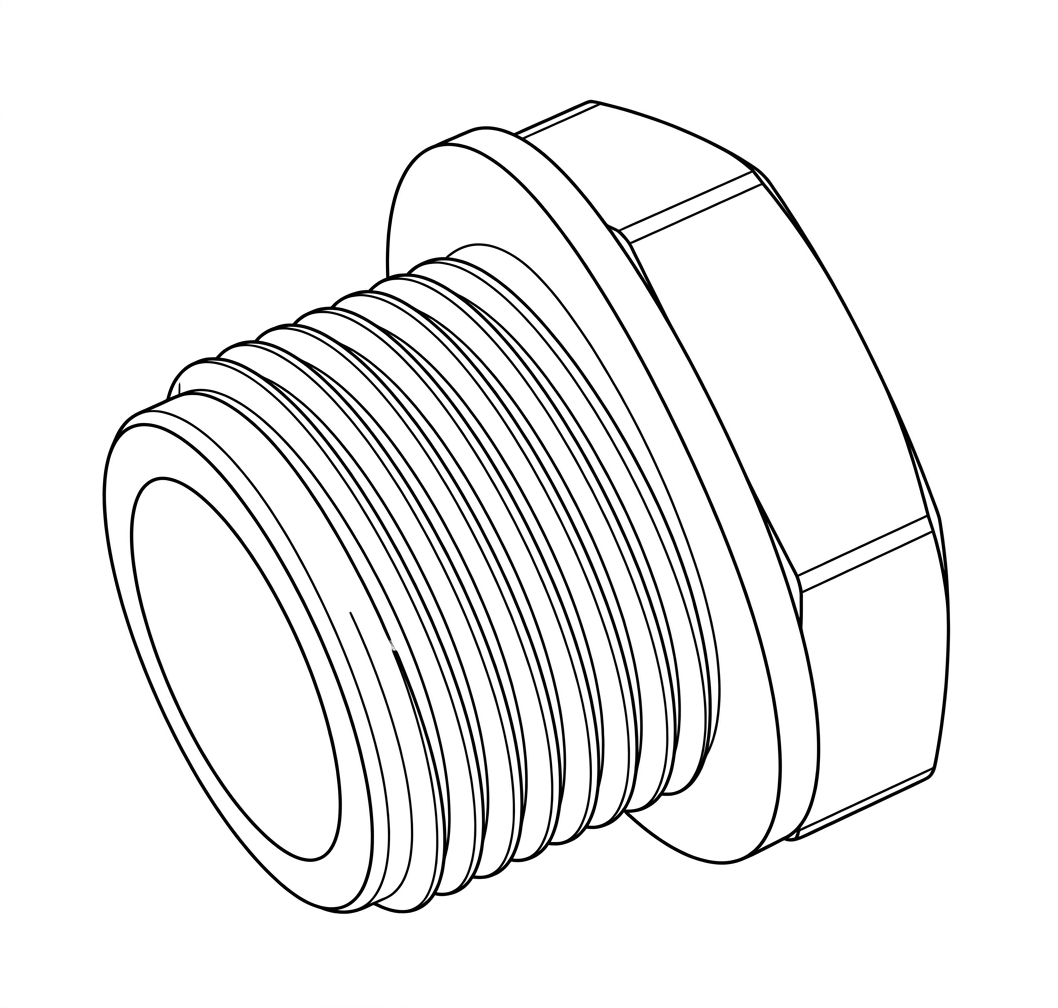

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
ⓘ This illustration is shared across all sizes of this item.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Plug
- Manufacturer part no.: 24420
Manufacturer information / datasheet:
- dozerwinchparts.com/24420/
- www.psifluidpower.ca/itemdetail/24420
- www.singlesourceaero.com/nsn/rfq/braden-carco-gearmatic-div-of-paccar/
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden PD7B Parts List (Braden)
- Braden PD15B Parts List (Braden)
- Braden CH400B Construction Hoist – Parts List (Braden)
- Braden CH280 Material List (Braden)
- Braden BG8B Parts List (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
