Description
Item details
- Item: PRESSURE PLATE PN: 103168
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Pressure Plate
- Manufacturer part no.: 103168
- Quantity on record: 13 EA
- Handal stock code: BR-00009
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Friction-brake part supplied as PRESSURE PLATE PN: 103168 (Handal stock code BR-00009). This brake part is supplied for service in the crane hoist, slew, or boom-hoist brake assembly. Friction material, disc dimensions, and plate stack arrangement must match the OEM service drawing to maintain the rated holding torque. Confirm dimensions, friction material grade, and assembly drawing reference. Bed in new friction surfaces per the OEM procedure before placing in full service. Handal stock code BR-00009. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

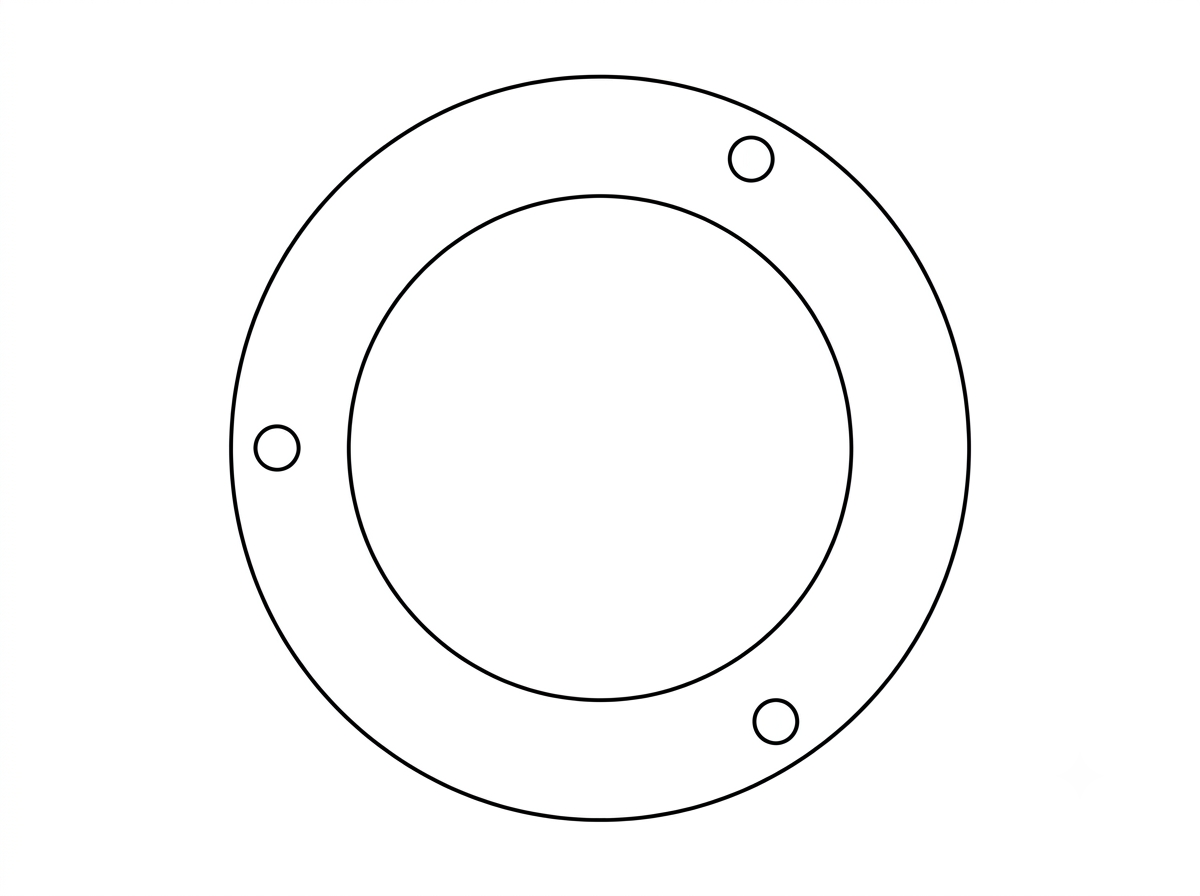

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
ⓘ This illustration is shared across all sizes of this item.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Pressure Plate
- Manufacturer part no.: 103168
Manufacturer information / datasheet:
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden CH280 Material List (Braden)
- Braden CH280A Hydraulic Winch Material List (covers units 06089, 06090, 06091, 06109) (Braden)
- Braden CH210A Hydraulic Winch Material List (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
