Description
Item details
- Item: PRESSURE PLATE STAMPING – PN: 25635
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: Pressure Plate
- Manufacturer part no.: 25635
- Quantity on record: 4 EA
- Handal stock code: BR-00197
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Mechanical retaining or locating part supplied as PRESSURE PLATE STAMPING – PN: 25635 (Handal stock code BR-00197). Used to retain, locate, or absorb wear between mating parts, this component is dimensioned for installation in crane gearboxes, sheave blocks, hoist drum end caps, and pin-jointed boom linkages. Material — typically through-hardened steel, bronze, or polymer — is selected for the contact load and lubrication regime of the joint. Confirm dimensions, material grade, hardness, and any retention method against the OEM assembly drawing. Inspect mating bore and shaft surfaces for wear and replace as a set where called for. Handal stock code BR-00197. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

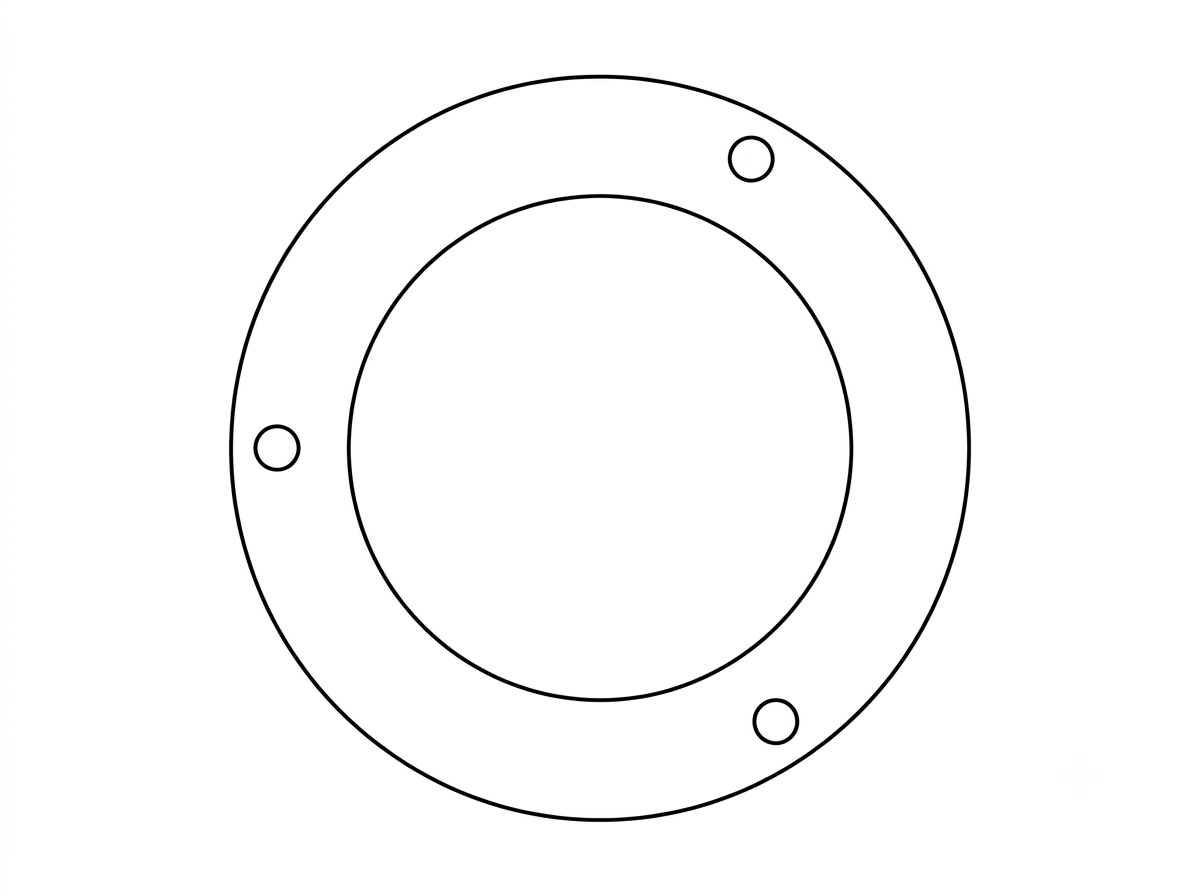

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: Pressure Plate
- Series: PD12C / PD15B
- Manufacturer part no.: 25635
Manufacturer information / datasheet:
- www.winchpartsupply.com/products/braden%C2%AE-pressure-plate-part-numb
- drillingparts.com/index.php?route=product/product&product_id=108172
- www.ebay.com/itm/188394440290
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden PD7B Parts List (Braden)
- Braden PD15B Parts List (Braden)
- Braden PD12C, PD15B, PD17A Hydraulic Hoist Series – Installation, Maintenance and Service Manual (alternate scan/mirror) (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
