Description
Item details
- Item: Tee Male Branch – PN: 22934
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: TEE-MALE BRANCH
- Manufacturer part no.: 22934
- Quantity on record: 8 EA
- Handal stock code: BR-00102
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Hydraulic hose or fitting supplied as Tee Male Branch – PN: 22934 (Handal stock code BR-00102). Hoses and fittings carry hydraulic oil between the crane power pack, control valves, hoist and slew motors, brake circuits, and luffing cylinders. Each line is rated for working pressure, burst pressure, temperature range, and the specific fluid in service. Fitting type — JIC, ORFS, BSPP, NPT, or SAE flange — must match the mating port to seal correctly. Confirm pressure rating, hose ID, OAL, end-fitting type, and orientation against the hydraulic schematic before installation. Bleed and pressure-test the line before returning the crane to service. Handal stock code BR-00102. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

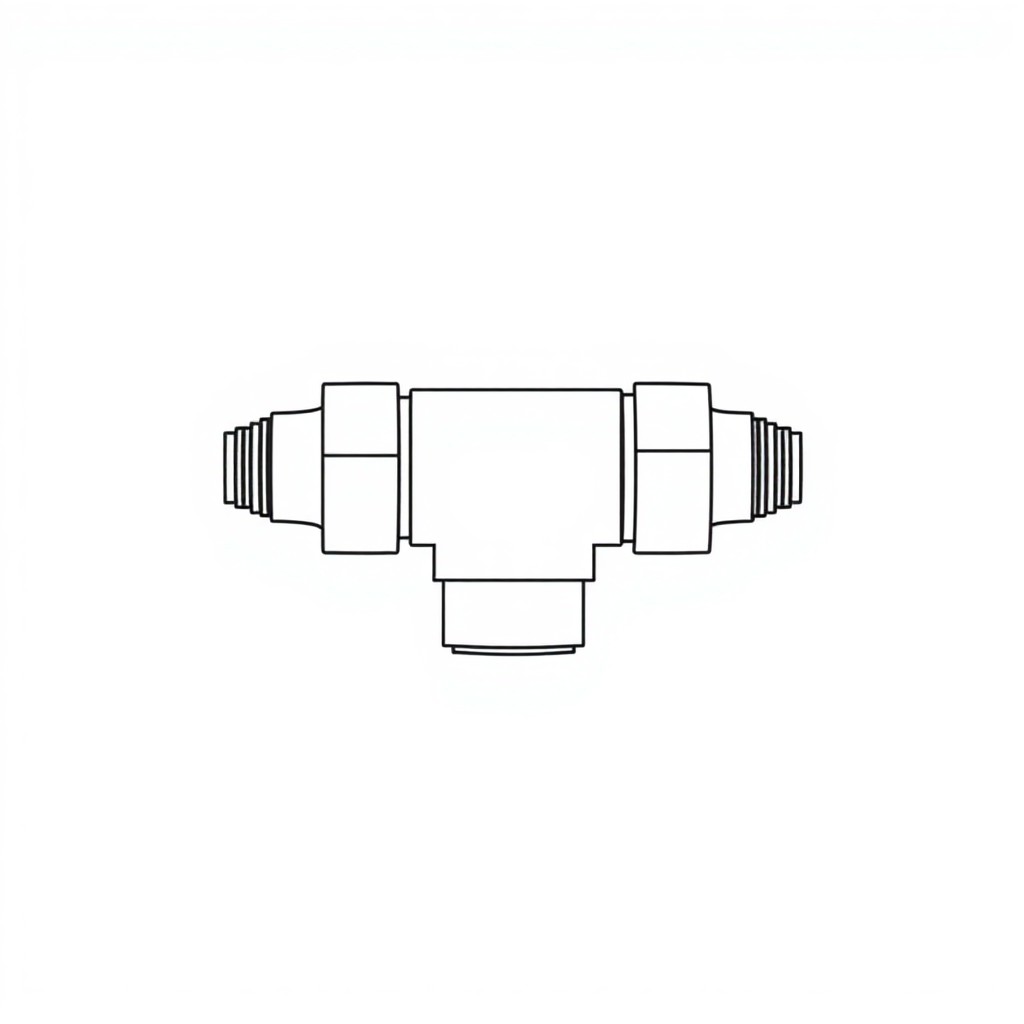

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: TEE-MALE BRANCH
- Series: Braden Style Winches PD12B
- Manufacturer part no.: 22934
- Material: Stainless Steel
- Color: Silver
- Condition: New
- Packing: 1 Piece / Box
Manufacturer information / datasheet:
- dozerwinchparts.com/22934/
- drillingparts.com/paccar-22934.html
- www.psifluidpower.ca/itemdetail/22934
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden PD15B Parts List (Braden)
- Braden CH150, CH175, CH185 & CH230 (and C2H150/C2H175/C2H185/C2H230) Material List – Standard Motor Installation (Braden)
- Braden CH150A, CH175A, CH185A & CH230A Planetary Hoists – Parts Catalog (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
