Description
Item details
- Item: Tee PN: 23769
- Manufacturer: Braden (PACCAR Winch)
- Manufacturer description: TEE-FEMALE PIPE
- Manufacturer part no.: 23769
- Quantity on record: 6 EA
- Handal stock code: BR-00335
- Location: Handal yard, Telok Kalong, Kemaman (Malaysia)
Hose-assembly or adaptor component supplied as Tee PN: 23769 (Handal stock code BR-00335). Used in the hydraulic system of pedestal cranes and lifting equipment, this hose or fitting is selected to match the pressure, fluid type, and connection thread of the line in service. Marine-duty assemblies typically use abrasion-resistant cover and crimped end fittings. Confirm pressure rating, hose ID, OAL, end-fitting type, and orientation against the hydraulic schematic before installation. Bleed and pressure-test the line before returning the crane to service. Handal stock code BR-00335. For confirmation of fit, lead time, and pricing, contact our team via Add to Quote or [email protected].

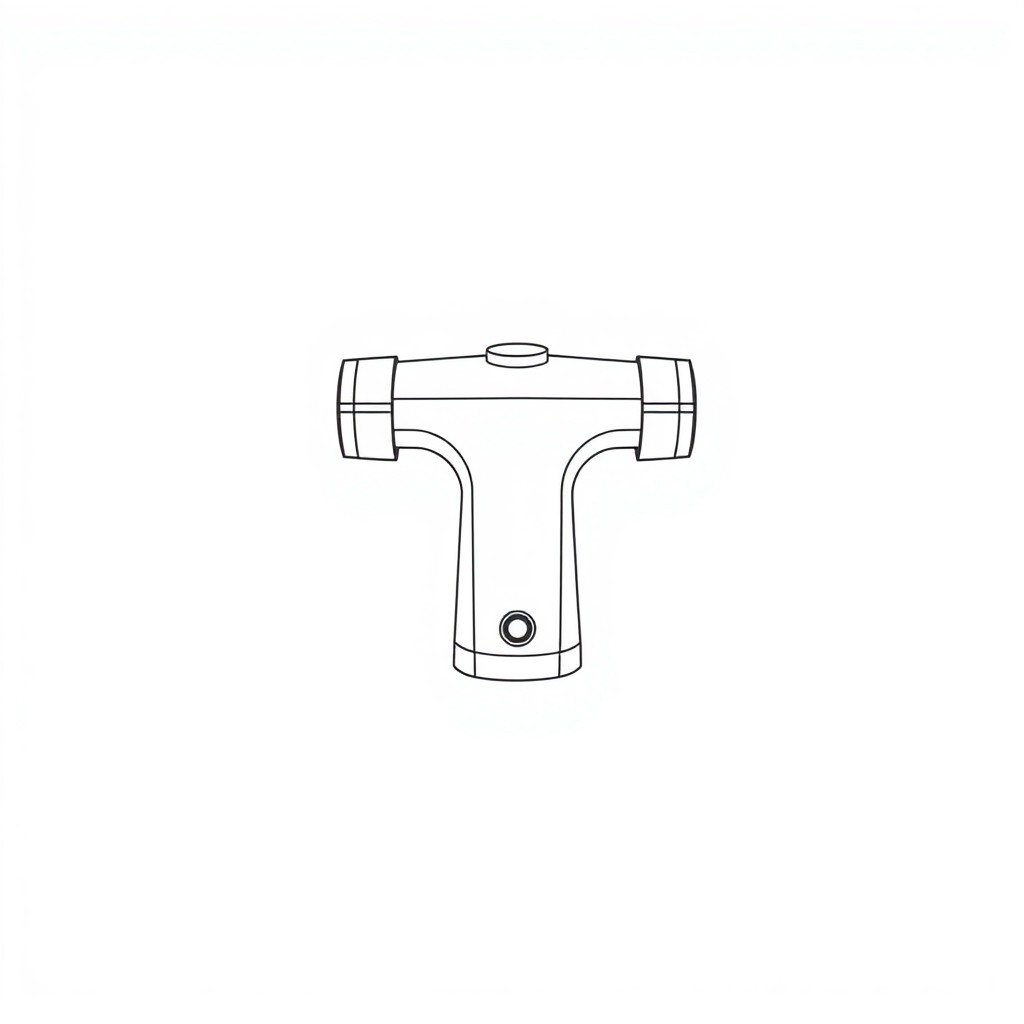

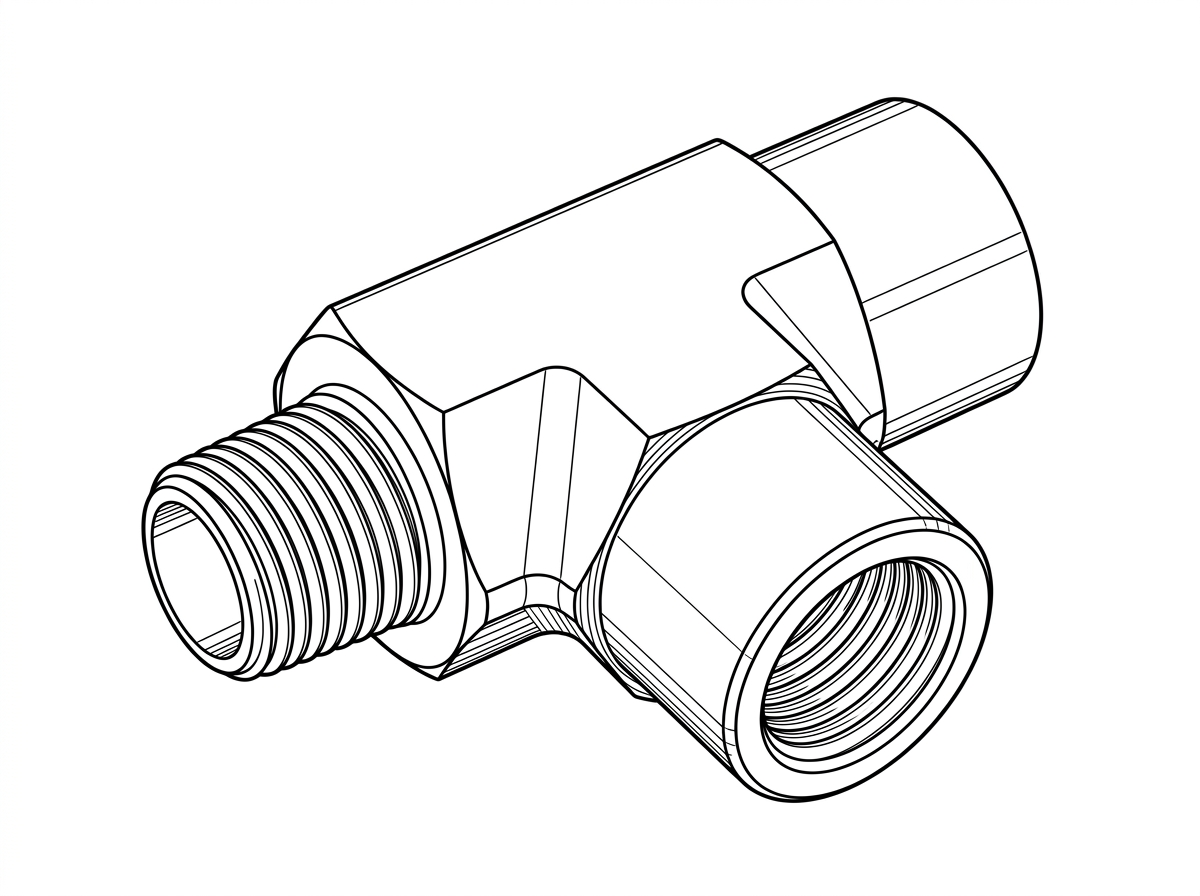

⚠ System-generated illustration. This image is an AI-generated drawing and does not reflect the exact item being offered. Please contact customer support for actual product images.
OEM / Specifications
- Manufacturer: Braden (PACCAR Winch)
- Product: TEE-FEMALE PIPE
- Manufacturer part no.: 23769
Manufacturer information / datasheet:
- dev.partsraptor.com/tee-female-pipe-braden-paccar-part-23769
- shop.aberdeendynamics.com/products/BRADEN-23769
- www.hydradynellc.com/product/23769/hydradyne-misc-part
Specifications from manufacturer/distributor sources (checked 2026-10-17). Buyers should verify before use.
Manufacturer documents
- Braden CH150, CH175, CH185 & CH230 (and C2H150/C2H175/C2H185/C2H230) Material List – Standard Motor Installation (Braden)
- Braden CH150A, CH175A, CH185A & CH230A Planetary Hoists – Parts Catalog (Braden)
Links go to the manufacturer or distributor publication for this part number (checked 2026-10-19). Copies are held in the Handal library and available on request. Buyers should verify fit and specifications.
